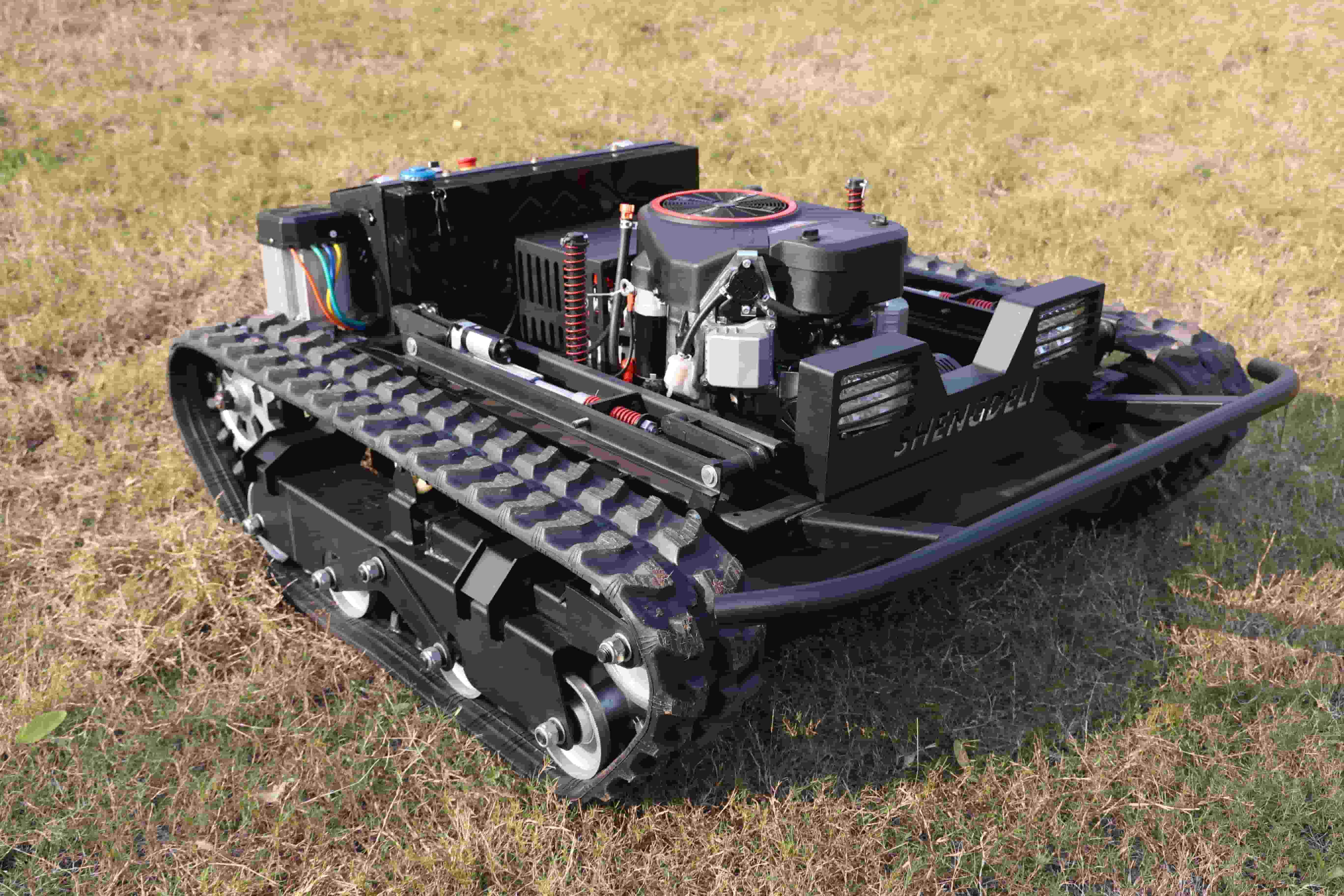

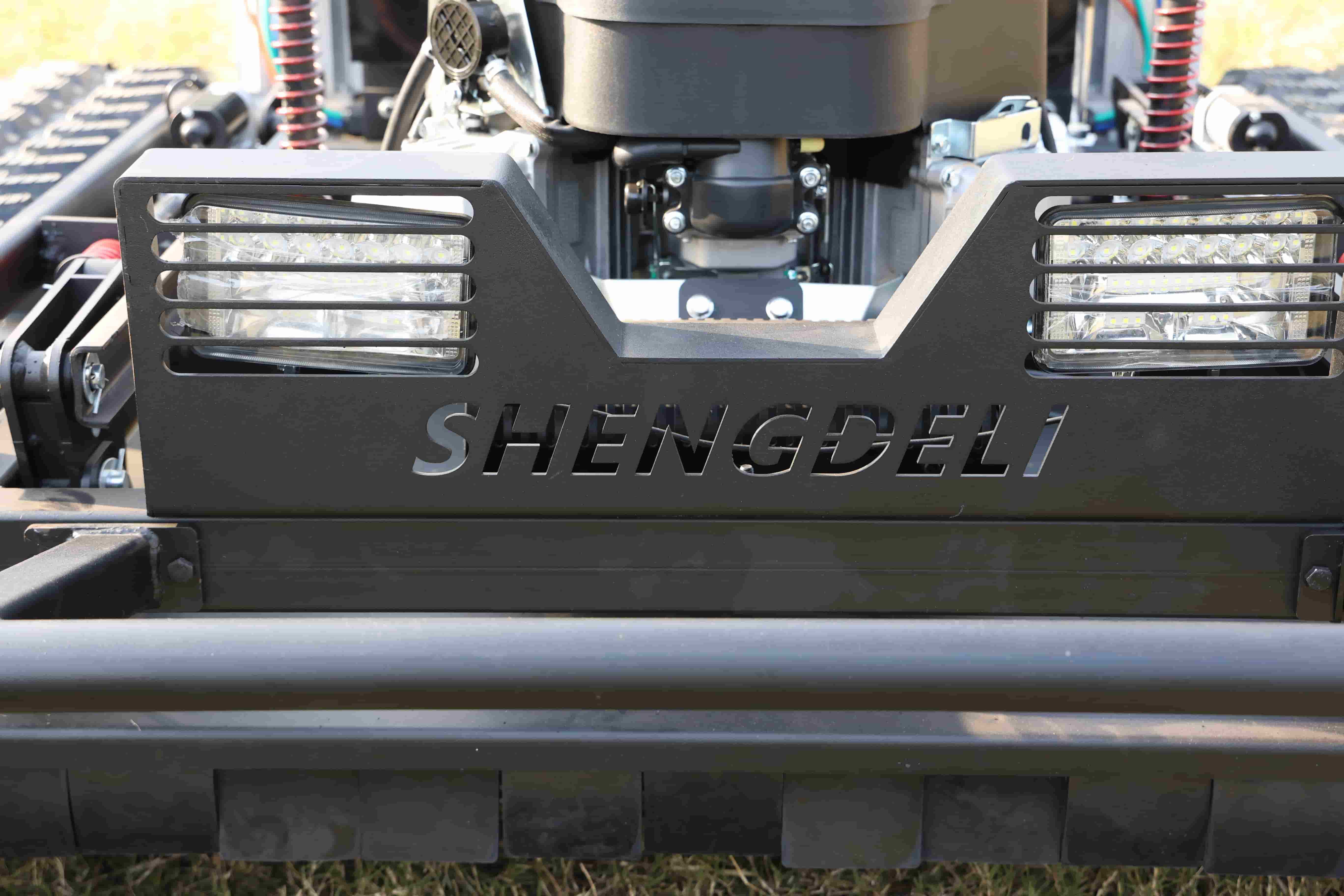

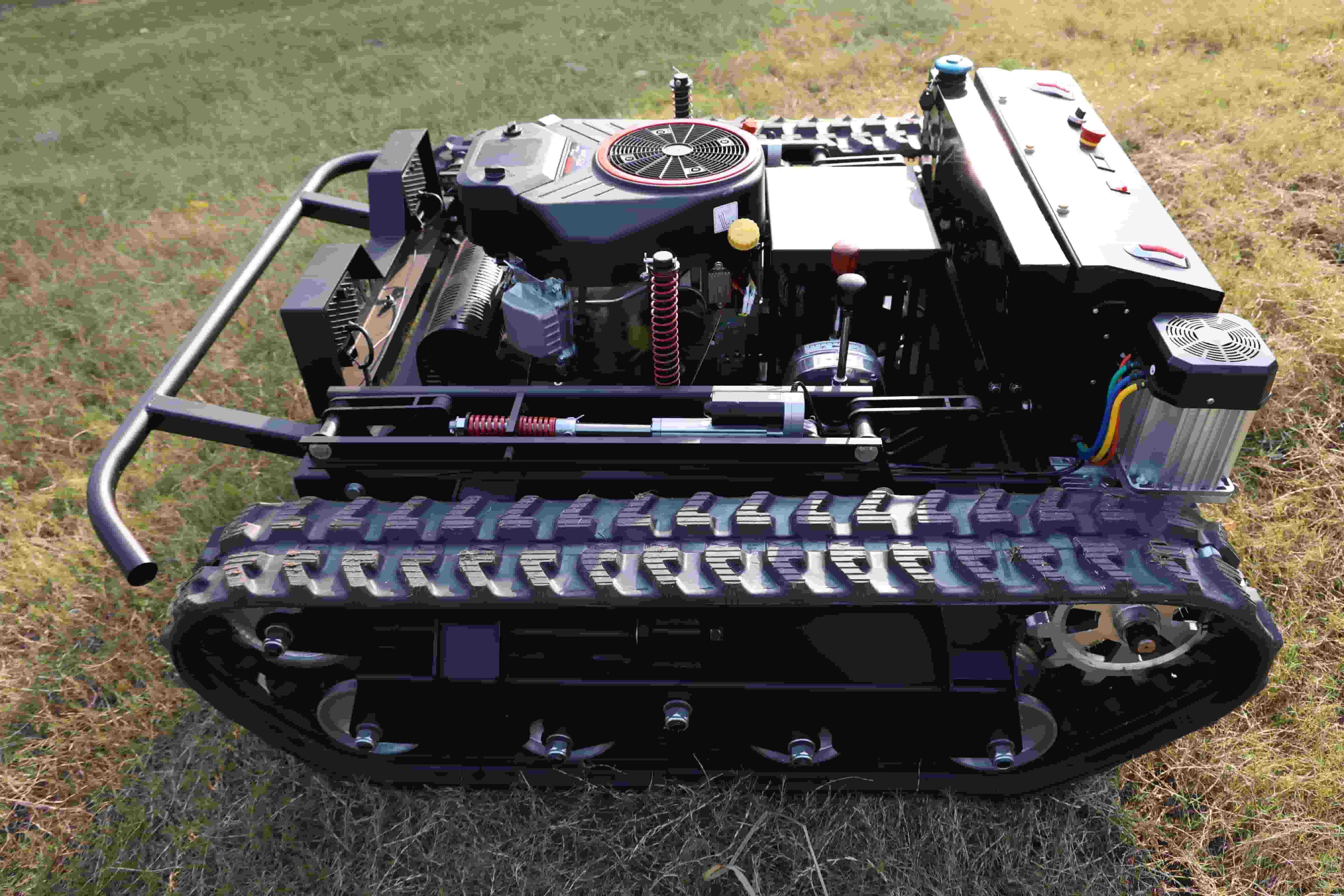

Self Propelled Gas Lawn Mower
All-Terrain Dominance: Handles 70° slopes (per table) and complex landscapes (ditches/rough terrain) with crawler track stability.
Intelligent Remote Control: 680m wireless range (table) + simple UI for all users, including elderly operators.
Professional-Grade Power: 27HP LONNIN engine (table) + 5kW generator ensures uninterrupted heavy-duty performance.
Precision Cutting System: 900mm cutting width (table) with 20-280mm adjustable height + mulching function for grass recycling.
Heavy-Duty Durability: 420kg robust build (table) + self-charging system for extended operation without downtime.
High-Power Gasoline Mower (Enhanced Version)
All-terrain remote-controlled mower - Saves time and labor, with mulching capability for grass recycling.
Easy operation for all users - Stable performance across varied terrains, ideal for prolonged operation.
Conquers 60° slopes effortlessly - Expert in climbing and ditch-crossing, with enhanced stability from crawler track design.
Product Parameters
| Parameter Category | Specification Details |
Model | SDL764-90A Crawler Mower |
Performance Specs | |
Application Range | Wild grass, weeds, slopes, orchards, gardens, lawns, etc. |
Packaging Dimensions | 1470×1470×900mm (L×W×H) |
Machine Dimensions | 1420×1420×760mm (L×W×H) |
Machine Weight | 420kg |
Cutting Width | 900mm |
Header Adjustment Range | 20-280mm |
Cutting Height | 20-280mm |
Travel Speed | 0-5 km/h |
Max. Operating Slope | ≤70° |
Power System | |
Charging Method | Engine self-charging system |
Operation Mode | Remote control |
Travel Mode | Electric crawler self-propelled |
Max. Remote Control Range | 680m |
Fuel Tank Capacity | 8L |
Travel Motor Rated Power | 1.5kW+2kW |
Travel Motor Voltage | 48V+12V |
Generator Rated Power | 5kW |
Engine Specifications | |
Engine Brand | LONNIN Longxin 764CC |
Standard Power | 27HP |
Engine Type | Vertical shaft |
Stroke | Twin-cylinder 4-stroke |
Starting Method | Electric start |
Fuel Type | 92# Gasoline |
Application Scenario
|
|
|
|
Greenhouses | Dams | Roadsides | Parks |
|
|
|
|
Under Photovoltaic Panels | Orchards | Home Gardens | Football Fields |
Mowing performance demonstration
Supports mowing vegetation up to 1.5 m, with easily adjustable grass retention levels.
Clear contrast between pre-mowing and post-mowing conditions.
Company factory
Technical Demonstration
Customer Cases
